Model No.: JLSK-2
Brand: Helper
Origin: China
Certification: ISO 9001-2008, CE
Voltage: 220V
Customized: Customized
Material: Stainless Steel
Application: Meat Processing And Sausage Making
Type: Sausage Sealing Machine
Status: New
Types Of: Sausage
Degree Of Automation: Automatic
Place Of Origin: China
Warranty Period: 1 Year
Marketing Type: Ordinary Product
Mechanical Test Report: Provided
Video Factory Inspection: Provided
Core Components: Plc
Core Selling Point: Automatic
| Selling Units | : | Set/Sets |
| Package Type | : | Seaworthy wooden case |
The file is encrypted. Please fill in the following information to continue accessing it

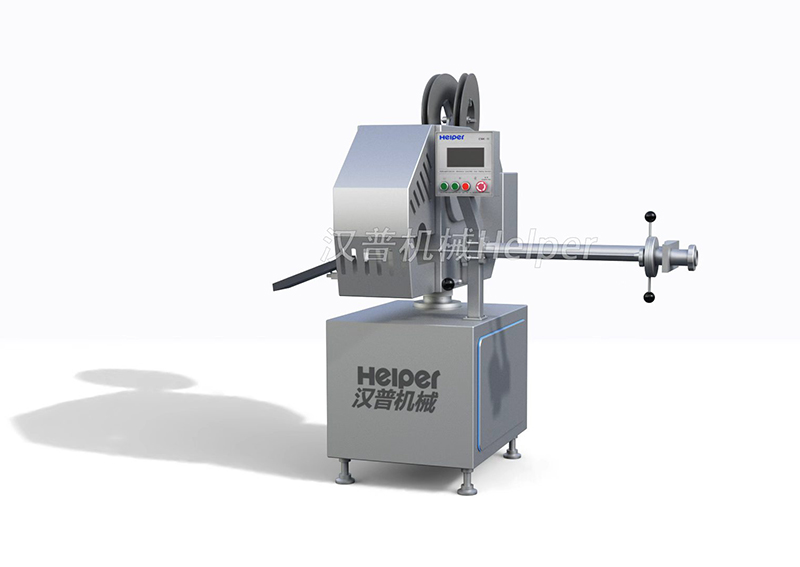

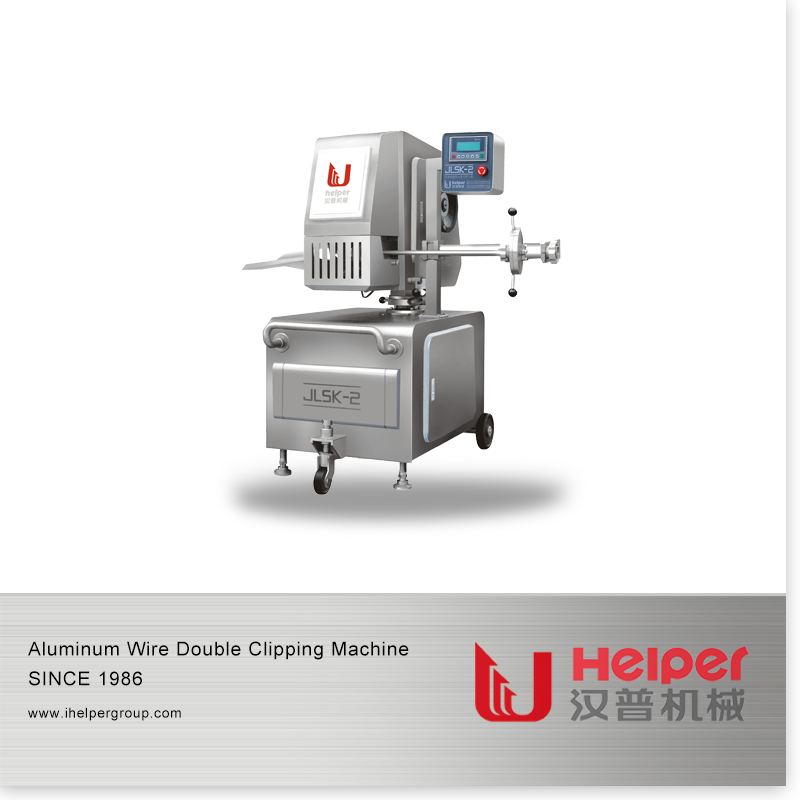

There are two options for this machine to meet customer requirements, that one is single speed with servo motor controlling system and the
other is five speeds adjustable. It is developed independently by Helper and we invested heavily on its unique mechanical driving system which
obtained many national patents. Connected to sausage filler, by closing sausages in artificial casing with aluminum clips, it will help producers to
make an automatic manufacturing line. The original aluminum wire clips from Helper and together with JLSK-2 clipping machine guarantee top quality,
efficient, trouble-free production.

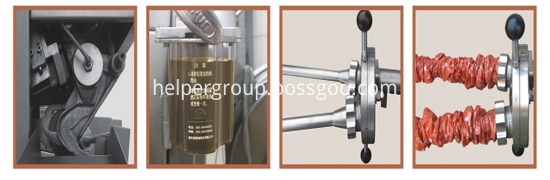

Features and characters
--- A new era of aluminum wire clipping machine.
--- Different types of molds and aluminum wires are available.
--- Double vacuum filling horns system for changing of casing easily.
--- Easy connected with various stuffing filling machines to realize automatic production.
--- Quipped with automatic counting and cutting system, about 0-9 ties adjustable.
--- Automatic oil lubrication system to release the work of maintance.
--- Quick clipping speed can reach 84/120times/min
--- Easy change of clip without tools.
--- Stainless steel structure and excellent surface treatment make for easy cleaning.
Main Technical Parameters
| Model | Clip speed | Power | Voltage |
| Time/min | kw | V | |
| Servo single speed | 80 | 3 | 380 |
| Speed servo adjusting | 120 | 2.7 | 380 |
| Casing | Clip height | N.W | Dimension |
| mm | mm | kg | mm |
| 28-85 | 920-1000 | 600 | 1160×1470×1400 |
| 28-85 | 920-1000 | 800 | 1160×1470×1400 |
Film of Automatic Clipper Series
